NC Powerful Gantry (

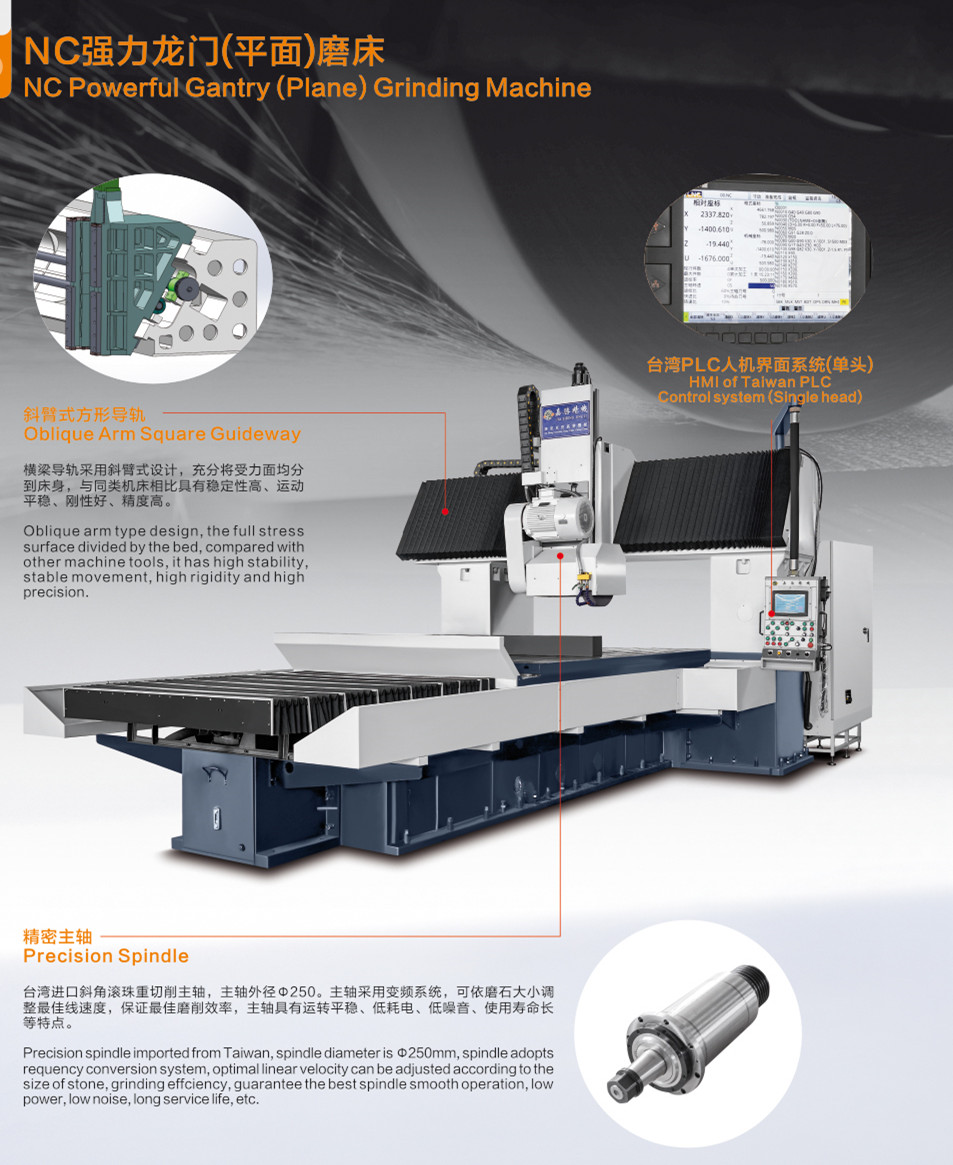

NC Powerful Gantry (Plane) Grinding Machine


Gantry grinder features (suitable for milling and machining industry) use



One, the main shaft


Taiwan imported heavy cutting bevel ball posen spindle, spindle ¢250 peripheral.


Second, the grinding wheel


The width of the grinding wheel is 100, the cutting area is large, and the efficiency is provided. The size of the grinding wheel is 500*100. The width of grinding wheel in the same industry is 500*75.


Third, the fuselage


1, workbench heavy load, the X axis ¢90 oil cylinder, the oil cylinder hydraulic system, oil cooler original Taiwan imports.


2. The machine adopts the outer waterproof plate gold, which is easy for people and employees to install and clamp the workpiece, convenient and safe to operate.


3. The machine tool has a dead weight of 18 tons and the machine body of the same industry is thin and light.


4, X axis base large center span, one flat one V design, Y axis beam large center distance, distance type hard rail design, enhance the machine tool cutting steel and stability


Four, electric control


Three-axis human-machine interface industrial control semi-automatic numerical control system, two-axis imported servo drive motor, pulse handwheel, easy for two-machine one-person operation, simple operation, improve work efficiency, reduce labor costs.


Five, according to customer requirements, full table disk customization, easy to use processing tooling, more efficiency, to ensure product quality.


Sixth, the attachment


1 set of magnetic separator.


2. Fully filter the water source, which can be recycled.


3. The water tank itself is equipped with a liquid level detection system, which can automatically identify the depth of water source.
